DETAILED INFORMATION

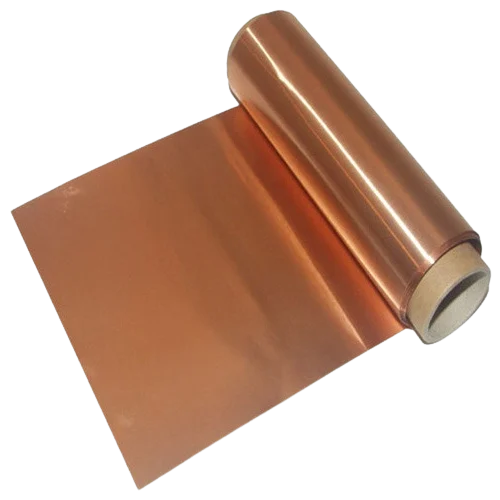

The copper shim sheet is a thin piece of copper used to fill gaps and provide a flat surface for transferring heat between two objects. Copper shim sheets are commonly used in electronics, particularly in applications that involve heat dissipation or thermal management.

Copper shim sheets can vary in thickness depending on their application, but most are very thin, typically ranging from 0.05 mm to 2 mm. They are also available in various sizes and can be easily cut or shaped to fit specific requirements.

In addition to the fact that copper is an excellent thermal conductor, which makes it an ideal material for heat transfer applications, copper shim sheets are also corrosion-resistant and have good electrical conductivity, making them suitable for electrical applications.

Copper shim sheets are a versatile and reliable material that can be used in various applications, particularly those that involve thermal management or electrical conductivity.

It is well known that copper is among the oldest metals found on Earth. This copper sheet has many advantages, ranging from its conductivity to its resistance to corrosion and its ductility and malleability, which make it highly desirable for the shipping industry. In addition to its outstanding conductivity and corrosion resistance, the copper sheet is highly regarded for its malleability and ductility. Pure Copper Sheet has natural antimicrobial properties that prevent organisms such as algae, moss, lichen, etc., from adhering to its surface. This is because copper Sheet’s natural antimicrobial properties make it difficult for those organisms to stick to it. ASTM A370 Copper Foil Sheets will be tested using some form of statistical variation to determine whether the alloy will be damaged. Normally, these bodies remain on the surface of metals and discolor or even release some chemicals that could damage them.

A wide range of Copper Shim Sheets, manufactured in compliance with industry-established standards and guidelines, are extensively used for sculptures, craft work, and home decor by our company. Our sheets are available in various thicknesses and grades. We charge our customers nominal rates for these sheets in different thicknesses and grades.

We provide our clients with high-quality Copper Shim sheets as a customer service provider. It is widely used in many different applications, such as crafts, embossing, electrical applications, building construction, transmission, power generation, and industrial machinery. These sheets are fabricated and valued at our vendor’s end against pure copper to meet the client’s requirements. We can provide these sheets at market-leading prices to our valued clients.

Copper Shim Sheet Specification Chart

Specifications Chart

ASTM B152 / ASME SB 152

Grades of Copper Sheet Plate

CW024A-H040 / C106, 102, 110

Size in MM

1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm

Thickness in MM

0.1 to 100 mm Thk

Form of Copper Plates

Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Strip, Blank (Circle), Flats, Ring (Flange)

Surface Finish

Hot rolled plate (HR), Cold rolled sheet (CR), 2B, BA NO(8), 2D, SATIN (Met with Plastic Coated)

The hardness of Copper coil

Hard, Soft, Half Hard, Spring Hard, Quarter Hard, etc.

Copper Shim Sheet Chemical Properties

Standard

Copper NO.

Chemical Composition

CU%

P%

Temper

Tensile strength (Mpa)

Elongation (%)

Average Grain Size (mm)

ASTM

B280/62

C12200

>99.9

0.015 to 0.040

>60

>205

>40

>0.040

Mechanical Properties  Of Copper Shim Sheet

Mechanical Composition Of Copper Shim Sheet

Value

Proof Stress

50-340 MPa

Tensile Strength

200-360 MPa

Elongation A50 mm

50-5 %

Hardness Vickers

40 to 110 HV

Equivalent Grades of Copper Shim Sheet

STANDARD

WERKSTOFF NR.

UNS

Copper

C12000

Copper Shims Size Chart

THICKNESS

4’X 2′

2M X 1M

2500MM X 12500MM

Size

Weight per sheet in Kg

0.35

2.37





0.4

2.68

7.14



0.45

2.99

8.04



0.5

3.3

8.93



0.55

3.61

9.8



0.6

3.92

10.72



0.7

4.64

12.5



0.8

5.3

14.29



0.9

6.0

16.07



1.0

6.6

17.86



1.2

7.9

21.43

34

1.4

9.3





1.6

10.6

28.56

45

2.0

13.3

35.72

56

2.5

16.5

44.65

70

3.0

19.9

53.58

84

3.25

21.6

58.05

91

4.0

26.5

71.44

112

4.76

32.3

85.0

133

5.0

33.1

89.3

140

6.0

39.8

107.16

168

6.35

42.2

113.4

177

8.0

54



224

9.525

64



266

10.0





279

12.0



215

335

12.7



227



15.8



283



16.0



268



19.0



340



20.0



358



22.0



393



25.0



447



30.0



536



40.0



715



45.0



804



50.0



893



75.0



1340



100.0



1787



150.0



2680



Sheet and Plate cut to size by our in-house guillotine and plate saws.

Dimension of Copper Shim Sheet

Plate Surface finishes

Thickness Chart (MM)

Width Chart (max MM)

2B – heat treated, Cold rolled, pickled, skin passed Sheet

0.25–8.0

2032

2D – heat treated, Cold rolled, pickled Sheet

0.4–6.35

1524

2E – heat treated, Cold rolled, mechanically descaled plate

0.4–8.0

2032

2R – bright annealed plate, Cold rolled

0.25–3.5

1524

2H – Work hardened plates

0.4–6.35

1524

Polished Plate, brushed plate

0.5–4.0

1524

ASTM B370 C110 Copper Shims Imperial Dimensions

Plate Surface finish

Gauge (in)

Width (max in)

2B – Cold rolled, heat treated, pickled, skin passed Plate

10–24

72*

2D – Cold rolled, heat treated, pickled plate

12–24

60

BA Mexinox only

18–28

48

Polished Sheet (not brushed)

11–24

60

Temper rolled Sheet Mexinox only

13–29

48

Application of Copper Shim Sheets

Due to their excellent thermal conductivity, electrical conductivity, and corrosion resistance properties, copper shim sheets have a wide range of applications. They can be used in several different ways. Here are some of the most common uses for copper shim sheets:

  1. Electronic Devices: Copper shim sheets are commonly used as thermal and electrical conductors in electronic devices. Electronic devices such as computers, cell phones, and other gadgets are often used to increase heat dissipation and thermal management.
  2. In the automotive industry, copper shim sheets improve the heat dissipation of car engines and transmissions. They are also used to manufacture gaskets, seals, and other components essential to the transportation industry.
  3. An important application of copper shim sheets in the aerospace industry is that they are used for heat dissipation, electrical conductivity, and corrosion resistance properties. They are used to manufacture aircraft engines, avionics, and other aircraft components.
  4. MRI machines, X-ray machines, other medical imaging equipment, surgical instruments, and medical devices are all made from copper shim sheets. They are primarily used in the medical sector in MRI machines, X-ray machines, and other imaging equipment.
  5. Due to copper’s outstanding electrical conductivity and corrosion resistance, shim sheets have been widely used in producing solar panels and wind turbines.

Copper shim sheets are aersatilinmn many industries and applications where thermal conductivity, electrical conductivity, and corrosion resistance are important considerations.

Copper Shim Sheets Application

  • Sea Water Equipment
  • Heat Exchangers
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Chemical Equipment
  • Condensers
  • Pulp and Paper Industry
