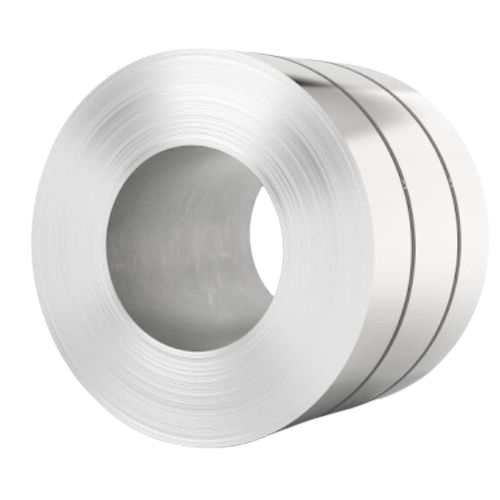

Stainless Steel Coils
ASTM A240 SS Coil, Stainless Steel Cold Rolled Coils, Stainless Steel Hot Rolled Coils, Stainless Steel Coil 2R (BA) Finish Supplier
ASTM A240 Stainless Steel Coil Distributors, Polished Stainless Steel Coil Wholesalers, ASTM A240 2B SS Coil Supplier, Stainless Steel Coil Exporters
DETAILED INFORMATION
Pearlshims.com is one of the leading suppliers, manufacturers, and exporters of stainless steel coils in Mumbai, India. We are among the most well-known providers of premium quality stainless steel coils, which are highly sought after in the market. It is important to note that these types of stainless steel coils come in different sizes and shapes. Stainless Steel 301 in cold and hot rolled forms.
We offer 201 stainless steel coils, 202 stainless steel coils, 301 stainless steel coils, 302 stainless steel coils, 304 stainless steel coils, and 304l stainless steel coils,
Coils of stainless steel 309, 310S, 316, 316L, 321 Stainless Steel Coil, 347 Stainless Steel Coil, 316TI, Coils made of 409 Stainless Steel, 410 Stainless Steel, 420 Stainless Steel, 430 Stainless Steel, 904L Stainless Steel.
Astm A240 Grade 201 Stainless Steel Coil, 4% Nickel Grade 201 Stainless Steel Coil, AISI 201 Stainless Steel Coil HR, Cold rolled 201 stainless steel coil, and Hot rolled 201 stainless steel coil are among the stainless steel coils we offer. Considering the industry’s set standards, we offer a wide range of well-manufactured stainless steel coils using the latest technologies and high-quality stainless steel.
The AISI 202 Stainless Steel Coil, the AISI 202 Stainless Steel Coil, and the Steel 202 Coil are all available. There are several industries in which the offered product is used, such as chemistry, petroleum, and electronics.
The entire range of high-quality stainless steel coils that we offer is made by the vendor in compliance with the standards set by the industry, and therefore the quality of our stainless steel coils is assured to be of the highest standard possible. We offer a wide range of products that can be customized according to the requirements of our clients.
Several industries require the use of 309 Stainless Steel Coils for different purposes. It is widely used in the food industries, chemical industries, electrical industries, generator industries, shaft industries, cement industries, gas industries, power projects, and many other industries.
A major difference between type 321 and type 321A is that type 321 contains a titanium stabilizer, making it a family of stainless steel. Choosing type 321 over type 321A is advisable when heat is a concern. Compared to grade 321, grade 321 can be used up to 900 degrees Celsius. Grade 321 has excellent forming and welding properties.
Stainless Steel Coils Specification
|
Thickness |
0.025 to 3 mm and as per Customer Requirement |
|
Width |
3 mm to 2000 mm and as per Customer Requirement |
|
Length |
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
|
Standard |
JIS, ASTM, AISI, GB, EN, DIN |
|
Surface |
2B, BA, HL, No. 4, Mirror, etc. |
|
Productivity |
500tons/month |
|
Application |
household products, ships building industry, petroleum & chemical industries, food processing and medical industry, machinery, and hardware fields, etc. |
|
MOQ |
1 ton |
|
Note |
321 stainless steel Coil can be made according to the customers’ requirements. |
|
Brand: |
Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
|
Manufacturer: |
POSCO, Aperam, Jindal Stainless, DKC Korea, ThyssenKrupp, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
|
Package |
Shrink-wrapped Carton boxes, Wooden pallets, Wooden boxes, Wooden crates Etc. Required. |
Stainless Steel Coils Chemical Composition
|
Element |
304 |
316 |
|
Carbon |
0.07 |
0.08 |
|
Manganese, max |
2.00 |
2.00 |
|
Phosphorus, max |
0.045 |
0.045 |
|
Sulfur, max |
0.030 |
0.030 |
|
Silicon |
0.75 |
0.75 |
|
Chromium |
17.50 – 19.50 |
16.00 – 18.00 |
|
Nickel |
8.00 – 10.50 |
10.00 – 14.00 |
|
Molybdenum |
… |
2.00 – 3.00 |
|
Nitrogen |
0.10 max |
0.10 max |
Stainless Steel Coils Mechanical Properties
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |||
| 304 |
min. max. |
– 0.08 |
– 2.0 |
– 0.75 |
– 0.045 |
– 0.030 |
18.0 20.0 |
– |
8.0 10.5 |
Properties |
Metric |
Imperial |
|
Tensile strength (transverse at room temperature) |
685 MPa |
99400 psi |
||||||||||
|
Tensile strength (longitudinal at room temperature) |
696 MPa |
101000 psi |
||||||||||
|
Yield strength (transverse at room temperature) |
292 MPa |
42400 psi |
||||||||||
|
Yield strength (longitudinal at room temperature) |
301 MPa |
43700 psi |
||||||||||
|
Compressive yield strength |
365 MPa |
52900 psi |
||||||||||
|
Elastic modulus |
197 GPa |
28573 ksi |
||||||||||
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
||||||||||
|
Elongation at break (longitudinal at room temperature) |
56% |
56% |
||||||||||
|
Elongation at break (transverse at room temperature) |
62.50% |
62.50% |
||||||||||
|
Hardness, Rockwell B (transverse at room temperature) |
85 |
85 |
||||||||||
|
Hardness, Rockwell B (longitudinal at room temperature) |
85 |
85 |
||||||||||
Stainless Steel Coils Physical Properties
|
Properties |
Metric |
Imperial |
|
Density |
7.86 g/cm3 |
0.284 lb/in³ |
Stainless Steel Coils Equivalent Grade
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | AFNOR | GOST | |||||||||
| BS | En | No | Name | |||||||||||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 | Z7CN18-09 |
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
AFNOR |
BS |
GOST |
EN |
|
Stainless Steel Coils |
1.4571 |
S20100 |
SUS 201 |
– |
– |
– |
– |
|||||||||
Stainless Steel Coils HS Code
|
HS Code |
Description |
|
72193490 |
COLD ROLLED STAINLESS STEEL COILS 0.500MM X 960MM X COIL- 204CU/2B/ MILL EDGE |
|
72193320 |
2B/ TRIM EDGE SS CR COIL PRIME QUALITY SPEC. 1.219MM X 1219.200MM X COILS |
|
72193490 |
0.500MM X 1135MM X COIL- 2B/ MILL EDGE COLD ROLLED SS COILS |
|
73209020 |
5X18 STAINLESS STEEL COILED |
|
72193390 |
PRIME QUALITY SS CR COILS 200MM X 1250MM X COILS |
|
72193420 |
2B/ TRIM EDGE SS CR COILS/STRIPS PRIME QUALITY SPEC. 0.800MM X 1250MM X COIL |
|
72202029 |
0.450MMX 110MM X COIL STAINLESS STEEL CR |
Stainless Steel Coils Types
- BA Finish Cold Rolled SS Coil
- SUS Bright Annealed BA SS Coil
- Cold Rolling SS Coil
- Colored Coated SS Coils
- Aisi ba SS Coils
- BA 6K 8K Finish SS Coils
- ASTMa240 2mm thick SS coils
- GB BAOSTEEL hot rolled SS coils
- aisi SS coil price
- 2b ss SS Coil
- BA SS Coil
- DIN SS coil
- JIS SUS J2 SS coil
Stainless Steel Coils Dimension and Shape Tolerance
|
Thickness (mm) |
1000 ≤ Width < 1250 (mm) |
630 ≤ Width < 1000 (mm) |
1250 ≤ Width < 1550 (mm) |
|
0.40 ≤ T < 0.60 |
±0.035 |
±0.035 |
– |
|
1.25 ≤ T < 1.60 |
±0.060 |
±0.055 |
±0.060 |
|
1.60 ≤ T < 2.00 |
±0.070 |
±0.065 |
±0.080 |
|
0.25 ≤ T < 0.40 |
±0.035 |
±0.030 |
– |
|
0.80 ≤ T < 1.00 |
±0.050 |
±0.040 |
±0.050 |
|
0.60 ≤ T < 0.80 |
±0.040 |
±0.040 |
– |
|
1.00 ≤ T < 1.25 |
±0.055 |
±0.050 |
±0.060 |
|
Cut Edge |
Mill Edge |
|
Aim -0 / +1 |
Aim ±10 |
|
Mill Edge |
Surface Finish |
Cut Edge |
|
10 mm |
2B / BA |
5 mm |
|
20 mm |
2D |
10 mm |
Stainless Steel Coils Size
|
Type |
Width |
Thickness |
Inner Diameter |
Surface Finish |
|
SS Hot Rolled No.1 Coils |
610~2000 mm |
2.5~10.0 mm |
610 +0/-5 mm |
2D, 2B, BA, No.4, No.3,No.5, HL, SB, |
|
SS Cold Rolled Coils |
610~1524 mm |
0.3~3.0 mm |
610 or 508 +0/-5 mm |
|
|
Pre-painted Stainless Steel Coils |
130-1524mm |
0.4-3.0mm |
– |
2B, 2D |
|
Sizes |
|
0.4mm |
|
0.5mm |
|
0.8mm |
|
1mm |
|
1.2mm |
|
1.6mm |
|
2mm |
|
3mm |
|
4mm |
|
5mm |
|
6mm |
|
8mm |
|
10mm |
|
12mm |
|
16mm |
|
20mm |
|
25mm |
Stainless Steel Coils Available Grade
- SS 202 Coil
- SS 304 Coil
- SS 321 Coil
- SS 310 Coil
- SS 410 Coil
- SS 416 Coil
- SS 420 Coil
- SS 316 Coila
Stainless Steel Coils Weight Limitation
|
Unit: ton |
5 feet |
1M |
3 feet |
4 feet |
|
300 series |
– |
– |
– |
3~22 |
|
300 series |
3~23 (≦5.0) / 27 (>5.0) |
3~18 |
3~17 |
3~22 |
|
Remark |
Both Cut Edge and Mill Edge are available |
|||
Stainless Steel Coils Features
|
|
|
|
|
Why choose Pearlshims.com for Stainless Steel Coils
It is well known that Pearlshims.com is one of the most trusted names in the Steel Industry. We provide a wide range of steel products and services, and our team of experts can assist you in finding the right product for your specific situation. Our commitment to quality products and services is unwavering, and we guarantee that our products are of the highest quality.
Stainless Steel Coils Application
- Kitchen equipment
- Architectural
- Aircraft exhaust manifolds
- Decorative applications
- Heating element tubing
- Furnace parts
- Expansion joints
- Heat exchangers
Stainless Steel Coils Packaging
-
We, Pearlshims.com, emphasize the importance of packing, especially in international shipments where consignments pass through various channels before arriving at their final destination, so we give extraordinary attention to packaging.
Depending on the product, we pack our goods in various ways. For example, there are several ways in which we pack our goods, including:–
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
