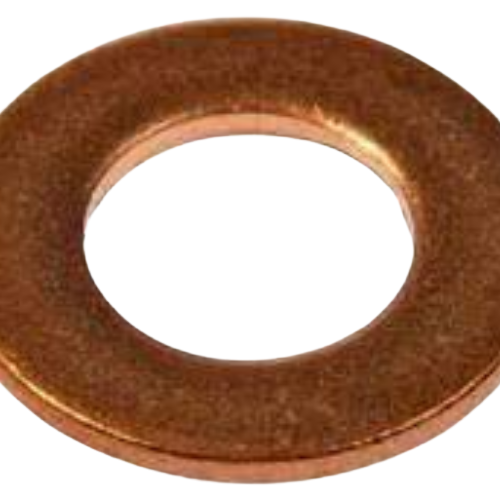

It is infinixsteelalloy.com mission to manufacture custom copper washers that meet our customers’ exacting requirements using the latest manufacturing technologies and processes.

• Stamping –
  The stamping process results in consistent washers, which are highly repeatable during production.  In most cases, it is the most common type of fabrication used for copper washers, especially when a large quantity is produced.
• Cutting washers with waterjets – Waterjet cutting is another method for cutting washers out of materials that cannot be laser cuts, such as copper, brass, and laminated materials, which are unsuitable for laser cutting. Material size and thickness determine tolerances. In addition to being CNC-controlled, our waterjet cutting equipment can cut materials up to 6″ thick.
• Wire EDM cutting – Used for hard metals and washers that require tight tolerances, wire EDM is excellent for cutting and shaping.

• DIN 125 Copper washers Flat washers
• DIN 126 Copper Washers
• DIN 7603 Copper sealing Washers
• Copper Thrust Washers Bronze Thrust Washers
• BS 4320 Copper washers Type A and B
• Brass Cup Washers Brass DIn 125 Washers
• Brass Flat Washers IS0 7089 Brass Washers
• ISO 7089 Copper Washers Bronze washers
• Bronze Spring Washers
• Brass threaded washers Copper threaded washers
• Brass chamfered washers
• Copper Fender washers Multitooth lock washers Copper lock washers
• ISO 7091 Plain Copper washers
• BS standard BA BSF BSW Washers
• Copper machined washers Serrated washers
• Brass Machined Washers
• Copper C washers
• Copper Cup Washers Copper screw Cups

There is something to keep in mind that copper washers come in an assortment of sizes, depending on whether they will be used externally or internally. An actual copper washer will have three dimensions: the inner diameter (ID), the outer diameter (OD), and the thickness (thickness). Generally, copper washers will have these three dimensions.

Copper washers are generally available in a variety of dimensions, including the following:

The inner diameter (ID) of the product is typically between 1/8 inch (3.17 mm) and 2 inches (50.8 mm), depending on the application of the product.

The washer’s outer diameter (OD) is generally determined by the hole size or fitting where it will be placed in the device, which determines how large the washer must be. Typically, the outer diameter of a cylinder is a little larger than the inner diameter of that cylinder.

In terms of thickness, these washers are available in a wide range of thicknesses ranging from very thin washers measuring less than 0.01 inches to very thick washers measuring more than 1/8 inch.

Dimensions given in this list should be viewed as general guidelines, and they can vary from application to application or industry to industry, depending on the specific needs and requirements of the application at hand. It is best to consult with a manufacturer or supplier directly for information regarding the dimensions and specifications of copper washers you need for your specific applications or a particular purpose to get accurate dimensions for your copper washers. This is especially important if you have a specific application or require the washer for a specific purpose.

1/8 inch (3.175 mm) | 1/4 inch (6.35 mm) | 0.032 inch (0.81 mm)

3/16 inch (4.7625 mm) | 3/8 inch (9.525 mm) | 0.032 inch (0.81 mm)

1/4 inch (6.35 mm) | 7/16 inch (11.1125 mm) | 0.04 inch (1.016 mm)

5/16 inch (7.9375 mm) | 1/2 inch (12.7 mm) | 0.04 inch (1.016 mm)

3/8 inch (9.525 mm) | 9/16 inch (14.2875 mm) | 0.04 inch (1.016 mm)

7/16 inch (11.1125 mm) | 5/8 inch (15.875 mm) | 0.04 inch (1.016 mm)

1/2 inch (12.7 mm) | 11/16 inch (17.4625 mm)| 0.04 inch (1.016 mm)

5/8 inch (15.875 mm) | 13/16 inch (20.6375 mm)| 0.04 inch (1.016 mm)

3/4 inch (19.05 mm) | 1 inch (25.4 mm) | 0.04 inch (1.016 mm)

• Automotive
• Power Generation
• Petrochemicals
• Fluid Power
• Instrumentation
• Chemicals & Fertilizer Plants
• Electronics
• Filtration
• Pharmaceuticals
• Hydraulic Fittings
• Hydraulic Cylinders
• Pneumatic Cylinders
• Valves and Pumps
• Plumbing Products
• Dairy/Food Processing
• Earthmoving & Construction Equipment
