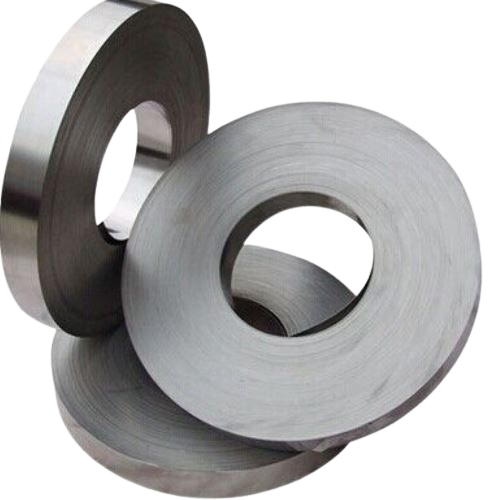

304l Stainless Steel Strip
ASTM A240 Stainless Steel 304L Strips Supplier, Stainless Steel UNS S30403 Strips Manufacturer, Stainless Steel 304L Strip, UNS S30403 Stainless Steel Strips, ASTM A167 Stainless Steel 304L Strips, Stainless Steel 304L Strips, 304L Stainless Steel Strips, SS UNS S30403 Strips Exporter
Hot Rolled Stainless Steel Strips Stockist, Cold Rolled Stainless Steel Strips Exporter, Hot Rolled 304L Stainless Steel Strips, Stainless Steel 304L Strips manufacturer, ASTM A167 304L Stainless Steel Strips Supplier
DETAILED INFORMATION
Our company, Pearshims.com, manufactures and supplies 304L Stainless Steel Strips of the highest quality. Our strips are manufactured with all quality checks, following high industry standards and using high-quality raw materials. SS 304L Strips are available in various forms, types, and specifications per the client’s requirements.
It is a low-carbon version of 304 Stainless Steel Strip that offers good weldability, formability, and corrosion resistance. SS 304 products are characterized by their high weldability and formability, which means they can be formed into various shapes and sizes, such as SS 304 Strips. We offer high-performance 304 Stainless Steel Strips that resist corrosion at very high temperatures for a long time.
Hot-rolled 304L stainless steel strips are quenched in water after hot-rolled billets and slabs. As required, the strips are passed through the mill several times to attain the required thickness. We obtained Cold Rolled Stainless Steel annealed, annealed, and quenched on polished rolls.
The stainless steel alloy is made from iron and chromium at a minimum of 10.5%. Chromium forms a thin oxide layer on the steel surface. This layer prevents further corrosion of the steel surface. Increasing the amount of Chromium increases corrosion resistance.
Different amounts of Carbon, Silicon, and Manganese are also present in stainless steel. Other elements, such as Nickel and Molybdenum, may be added to stainless steel to add other useful properties, such as enhanced formability and greater corrosion resistance.
304L Stainless Steel Strip Specifications:
|
Grades |
Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
|
Thickness |
0.02mm – 5.0mm |
|
Width |
3.2mm – 1500mm |
|
Length |
AS PER THE CUSTOMER’S REQUIREMENT |
|
Type of Material |
STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |
|
Test Certificate |
Yes. |
|
Finish |
NO.1, 2B, 2D, 2H, 2R, 4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
|
Make |
JINDAL, BAHRU, POSCO KOREA, POSCO THAINOX, COLUMBUS, ACERINOX, APERAM, TISCO, NISSHIN, NIPPON, AND MANY MORE MILLS. |
Chemical Composition of Stainless Steel 304L Strip
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
N |
|
304L |
0.03max |
2.0max |
0.75max |
0.45max |
0.03max |
min: 18.0 max: 20.0 |
min: 8.0 max: 12.0 |
0.10 max |
ASTM A240 SS 304L Strip Mechanical Properties
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
|
304L |
485 |
170 |
40 |
Equivalent Grades of 304L Stainless Steel Strip
|
STANDARD |
UNS |
JIS |
WERKSTOFF NR. |
AFNOR |
BS |
GOST |
EN |
|
SS 304L |
S30403 |
SUS 304L |
1.4307 |
Z3CN18-10 |
304S11 |
03?18?11 |
X2CrNi18-9 / X2CrNi19-11 |
Stainless Steel 304L Strip Physical Properties
|
Density LBM/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
|
at 68°F: 0.285 |
9.4 at 212°F |
28.3 at 68°F |
28 |
9.4 at 32 ° 212°F |
0.1200 at 68°F to 212°F |
2500 to 2590 |
|
|
12.4 at 932 °F |
39.4 at 752°F |
|
10.2 at 32 ° 1000°F |
|
|
|
|
|
49.6 at 1652 °F |
|
10.4 at 32 ° 1500°F |
|
|
Types Of 304L Stainless steel strip
- 304L Stainless steel strip
- 304L Stainless steel strip
- 304L Stainless steel strip
Testings (Destructive, Non Destructive):
- Positive Material Identification – PMI Testing
- Chemical Analysis – Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
Advantages :
– High Strength
– Resistant High Mechanical Stresses
– Resistant to High Pressure
– Resistant to High Temperature
– Good Formality
– Reusable
Packaging:
- The Pearlshims.com team is very concerned with the quality of packaging, as packaging plays a crucial role, especially in international shipments where the consignment passes through several channels before reaching its ultimate destination. To provide you with the best product possible, we place an extraordinary amount of emphasis on packaging. Our products are packaged in several different ways based on their precise nature. Some of how we package our goods include:–
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
